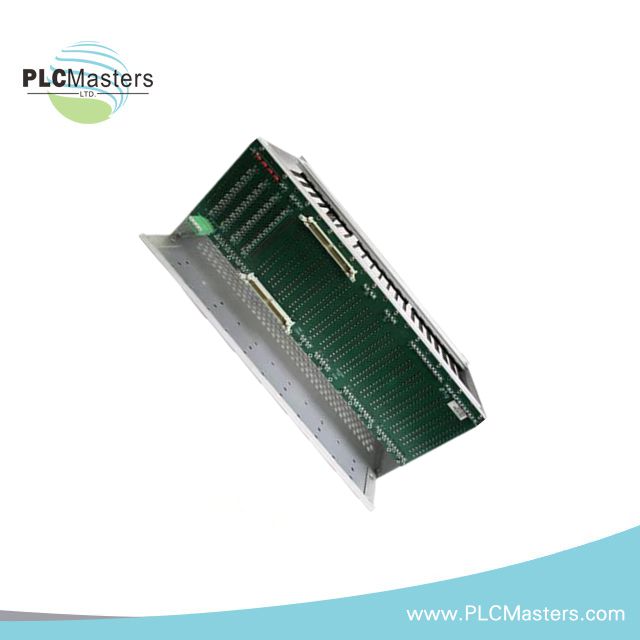

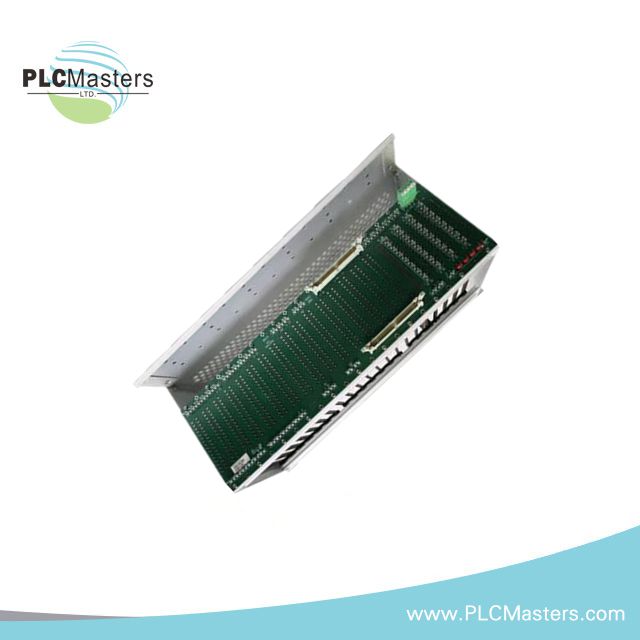

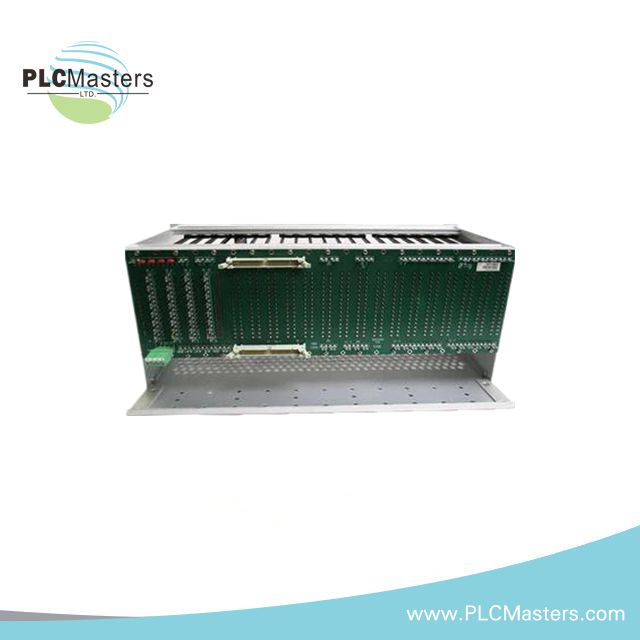

Hima B 9302 F K 1406 I/O Rack Assembly Kit

Hima B 9302 F K 1406 I/O Rack Assembly Kit

  • 1000 In stock
  • Manufacturer: HIMA

  • Product No.: B9302

  • Condition: In stock

  • Product Type: F K 1406 I/O Rack

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 10500g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41440265470042,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B9302","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hima B 9302 F K 1406 I\/O Rack Assembly Kit","public_title":null,"options":["Default Title"],"price":23000,"weight":10500,"compare_at_price":52200,"inventory_management":"shopify","barcode":"Germany","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

HIMA B9302 Description

The HIMA B 9302 is an I/O Rack Assembly Kit designed for use in safety-critical industrial automation systems. It provides a structured solution for integrating input and output modules, enhancing the overall functionality and reliability of safety-related applications.

Key Features:

  1. I/O Rack:

    • Model: F K 1406 I/O Rack
    • Dimensions: 4 units high, 19 inches wide
    • Integrated Features: Includes a cable tray and a hinged receptacle for easy labeling and organization.
  2. Coupling Module:

    • Included Component: F 7553 Coupling Module installed in slot 17 for effective signal routing and connectivity.
  3. Flat Cable Options:

    • Cable Model: BV 7032 Flat Cable
    • Length Options:
      • B 9302-0.5: 0.5 meters
      • B 9302-1: 1 meter
      • Customizable lengths available as B 9302-X.
    • Maximum Bus Length: Up to 30 meters for extended connectivity.
  4. I/O Module Slots:

    • Configuration: Slots 1 through 16 are designated for various I/O modules, allowing for versatile system setups.
  5. Optional Power Distribution Modules:

    • Model: F 7133 Power Distribution Modules
    • Capacity: 1 to 4 modules can be installed in slots 18 to 21.
    • Functionality: These modules provide fusing and distribution of L+ (EL+) and L-, featuring internal fuse monitoring for safety and fault detection.

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
