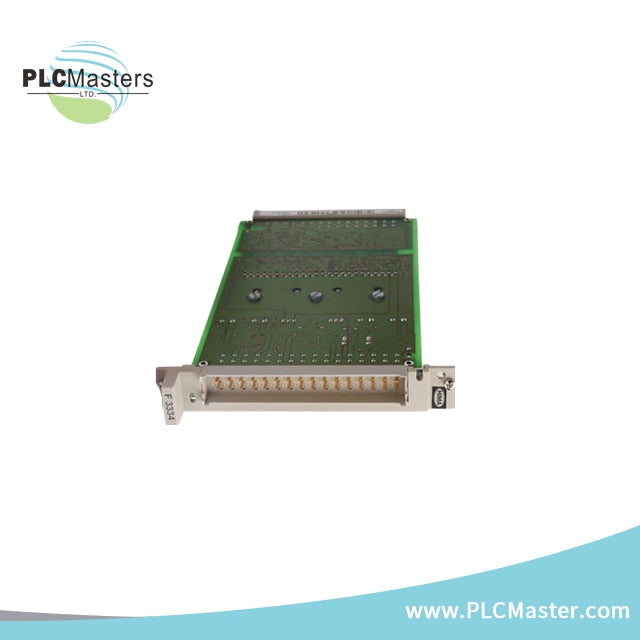

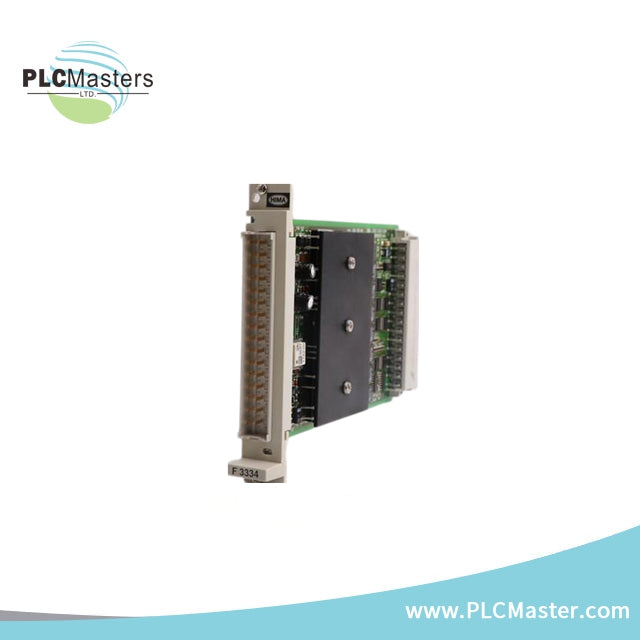

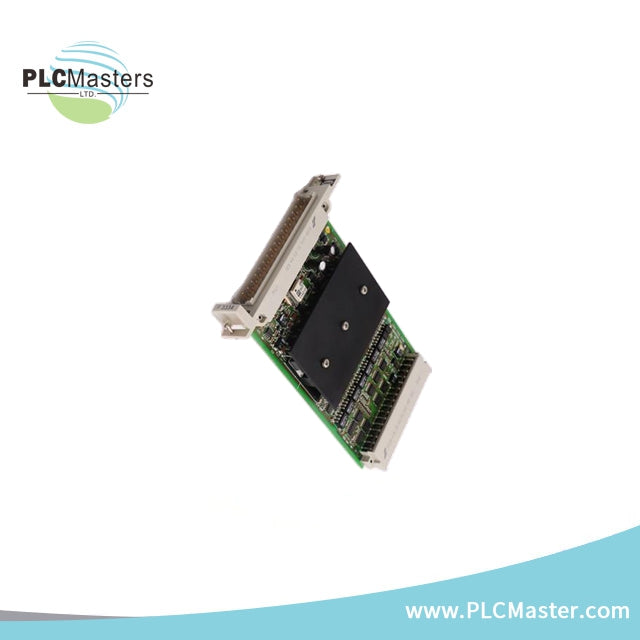

Hima F3334 4 Fold Output Module

Hima F3334 4 Fold Output Module

  • 1000 In stock
  • Manufacturer: HIMA

  • Product No.: F3334

  • Condition: In stock

  • Product Type: 4 Fold Output Module

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 600g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41397315502170,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"F3334","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hima F3334 4 Fold Output Module","public_title":null,"options":["Default Title"],"price":20000,"weight":600,"compare_at_price":49500,"inventory_management":"shopify","barcode":"Germany","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview:

  • Safety-related 4-fold output module for industrial automation
  • Provides reliable control for resistive and inductive loads

Technical Specifications:

  • Outputs:

    • Current: 2 A
    • Short Circuit Proof: Yes
    • Internal Voltage Drop: Max. 2 V at 2 A load
    • Admissible Line Resistance: Max. 3.6 Ohm
    • Undervoltage Tripping: ≤ 16 V
    • Short Circuit Current: 2.6 ... 5 A
    • Line Break: 0.5 ... 9.5 mA
    • Output Leakage Current: Max. 550 µA
    • Output Voltage (Reset): Max. 1.5 V
  • Power Supply:

    • Current Input WD: Max. 30 mA
    • Duration of Test Signal: Max. 250 µs
    • Operating Data: 5 V DC: 130 mA, 24 V DC: 130 mA (in addition to load)
  • Physical Specifications:

    • Space Requirement: 4 TE

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
