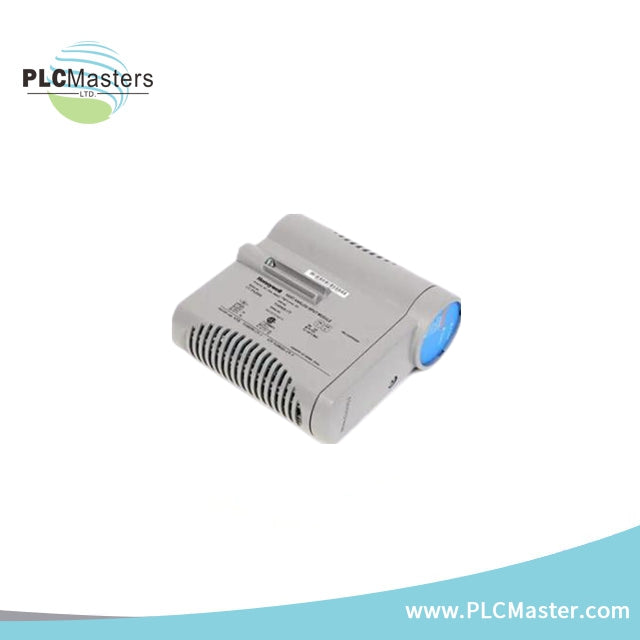

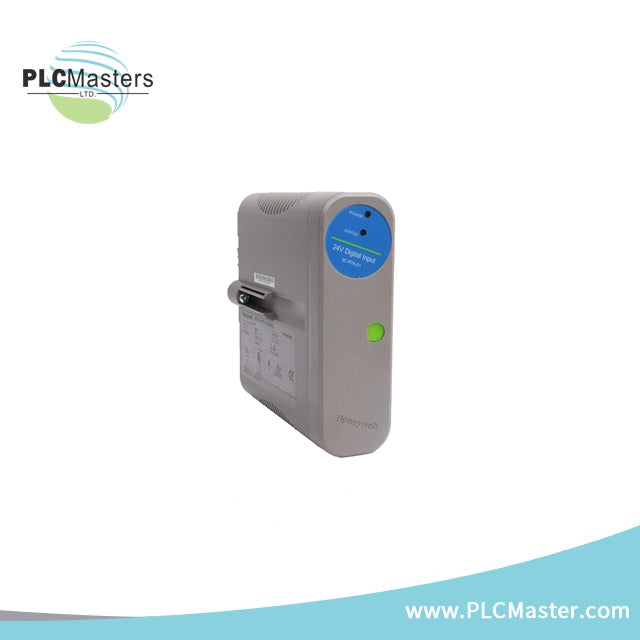

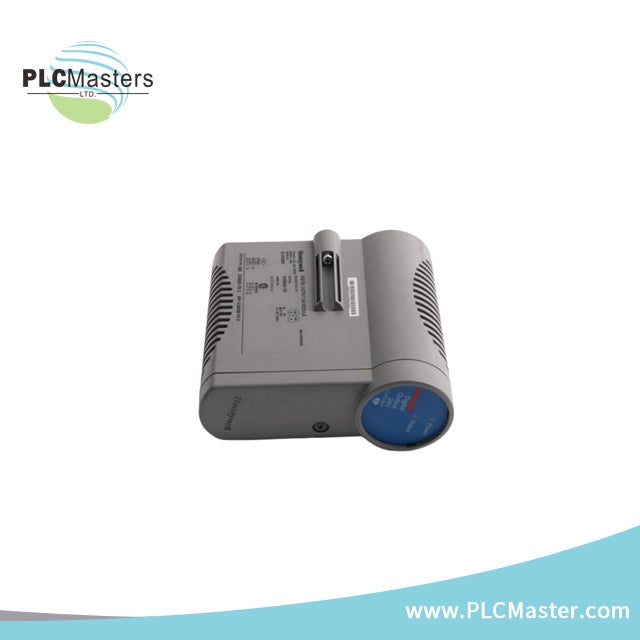

HONEYWELL 8C-PDIL51 Digital Input 24VDC Module

HONEYWELL 8C-PDIL51 Digital Input 24VDC Module

  • 1000 In stock
  • Manufacturer: HONEYWELL

  • Product No.: 8C-PDIL51

  • Condition: In stock

  • Product Type: Digital Input 24VDC Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41382002458714,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"8C-PDIL51","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HONEYWELL 8C-PDIL51 Digital Input 24VDC Module","public_title":null,"options":["Default Title"],"price":20000,"weight":1000,"compare_at_price":52000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

Function: The HONEYWELL 8C-PDIL51 Digital Input 24VDC module is designed to accept 24VDC signals as discrete inputs.


Notable Features

  • Extensive Internal Diagnostics: Ensures data integrity.
  • No Open Wire Detection: The module does not detect open wire conditions.
  • Optional Redundancy: Can be configured for redundant operation.
  • Internal/External Field Power Selection: Allows for flexible power source configuration.
  • Onboard Excitation Power: Eliminates the need for marshalling power.
  • Non-Incendive Field Power Supply: Ensures safe operation in hazardous environments.
  • Direct/Reverse Input Indication: Provides clear input signal status.
  • Galvanic Isolation: Protects against electrical interference and ensures signal integrity.

Detailed Specifications – DI 24VDC

  • Input/Output Model: CC-PDIL51 - 24VDC Digital Input
  • IOTA Models:
    • CC-TDIL51: Non-redundant, 9 inches
    • CC-TDIL61: Redundant, 12 inches
  • Input Channels: 32
  • Galvanic Isolation:
    • Isolation of 1000 VAC RMS between any input terminal voltage and common
    • Achieved using optical isolation in the IOM (Input/Output Module)
  • DI Power Voltage Range: 18 to 30 VDC
  • ON Sense Voltage/Current: Minimum 13 VDC or 3 mA
  • OFF Sense Voltage/Current: Maximum 5 VDC or 1.2 mA
  • Input Impedance: 4.2 KΩ
  • Absolute Delay Across Input Filter and Isolation: 5 ms ± 20%
  • Field Resistance for Guaranteed ON Condition: 300 Ω max at 15 VDC
  • Field Resistance for Guaranteed OFF Condition: 30 KΩ min at 30 VDC

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
