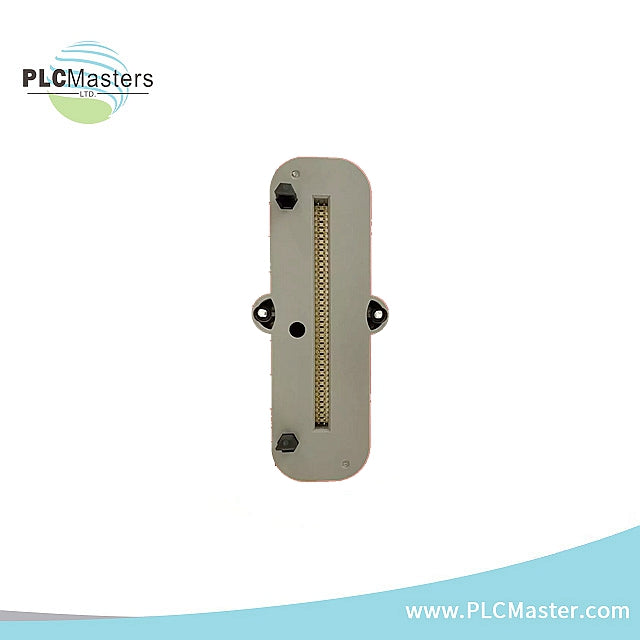

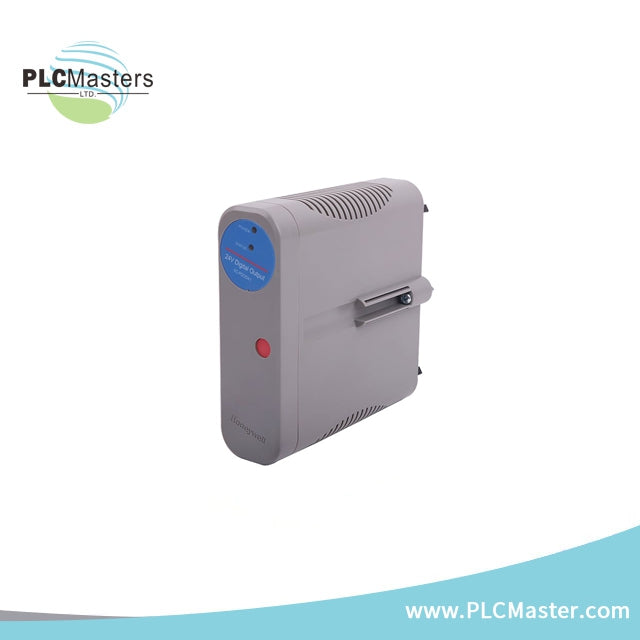

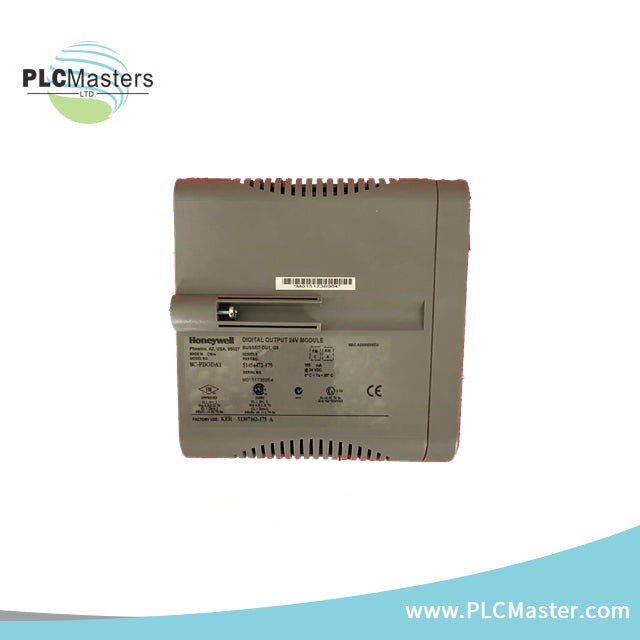

HoneyWell 8C-PDODA1 Digital Output 24VDC

HoneyWell 8C-PDODA1 Digital Output 24VDC

  • 1000 In stock
  • Manufacturer: HoneyWell

  • Product No.: 8C-PDODA1

  • Condition: In stock

  • Product Type: Digital Output 24VDC

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1134g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41402679754842,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"8C-PDODA1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HoneyWell 8C-PDODA1 Digital Output 24VDC","public_title":null,"options":["Default Title"],"price":20000,"weight":1134,"compare_at_price":50000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

  • Honeywell 8C-PDODA1
  • Digital Output (DO) module for Honeywell Experion Process Knowledge System (PKS)
  • Provides reliable control of digital output signals
  • Features field isolation, bussed output, and a coated design for durability

Technical Specifications

  • Product Type: Digital Output 24 VDC, Field Isolated, Bussed Output, Coated
  • Output Channels: 32
  • Output Type: Source
  • Voltage Rating: 24 VDC
  • Module Current Rating: 105 mA
  • Load Voltage: 30 VDC Maximum
  • Load Current: 100 mA per channel (Max) and 3.2 A per module (Max)
  • Galvanic Isolation: 1000 VAC RMS or ±1500 VDC
  • On-State Voltage: 24 VDC (typ) (load current @ 0.1A max)
  • Off-State Leak Current: 5 µA (max)
  • Turn-On/Turn-Off Time: 10 ms (max)
  • Gap (0 current) of Output to Field on Switchover: None (0 ms) (applies to Redundancy only)
  • Module Removal and Insertion: Under Power Supported

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
