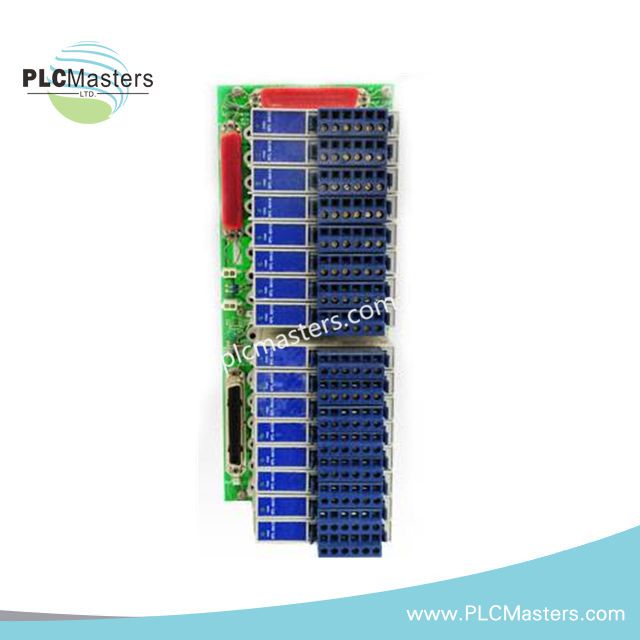

Honeywell MU-GAIH14 Analog Input/Smart Transmitter Interface
    Honeywell MU-GAIH14 Analog Input/Smart Transmitter Interface

    Honeywell MU-GAIH14 Analog Input/Smart Transmitter Interface

    • 1000 In stock

    • Manufacturer: HoneyWell

    • Product No.: MU-GAIH14

    • Condition： In stock

    • Product Type: Analog Input/Smart Transmitter Interface

    • Product Origin: USA

    • Payment:T/T, Western Union

    • Weight: 500g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":41629751378010,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"MU-GAIH14","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Honeywell MU-GAIH14 Analog Input\/Smart Transmitter Interface","public_title":null,"options":["Default Title"],"price":26600,"weight":500,"compare_at_price":45900,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

    What our customer's think

    Reviews

    100% original parts at unbeatable prices. Highly satisfied!

    John K.

    Reliable service with a solid warranty. Trustworthy supplier.

    Emily R.

    Fast shipping and great technical support. Highly recommend!" -

    Carlos M.

    Description

    Overview

    The Honeywell MU-GAIH14 is a high-level analog input interface designed for use in hazardous areas. It processes up to 16 high-level DC signals from field transmitters. The module is compatible with Honeywell Experion PKS systems and ensures safe, accurate signal processing.

    Technical Specifications

    • Model: MU-GAIH14
    • Type: High-Level Analog Input/Smart Transmitter Interface (HLAI/STI) Field Termination Assembly (FTA)
    • Input Channels: 16 high-level DC signals
    • Input Type:
      • Voltage (self-powered or 2-wire transmitters)
      • Current (4-20 mA with 250 Ω resistor)
    • Accuracy: ±0.1% of full scale
    • Input Voltage Range: 0-10 V
    • Input Current Range: 4-20 mA
    • Power Supply: 24 V DC
    • Power Consumption: 1.2 A max at 24 VDC
    • Isolation Voltage: 250 VAC
    • Operating Temperature Range: -40°C to +85°C
    • Mounting Type: DIN Rail
    • Dimensions: 3.8 cm x 12.7 cm x 17.8 cm
    • Weight: 0.5 kg
    • EMC Compliance: EN 61000-6-2, EN 61000-6-4
    • Protection Rating: IP20
    • Operating Humidity Range: 5% to 95% RH (non-condensing)
    • Storage Temperature Range: -40°C to 85°C

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
