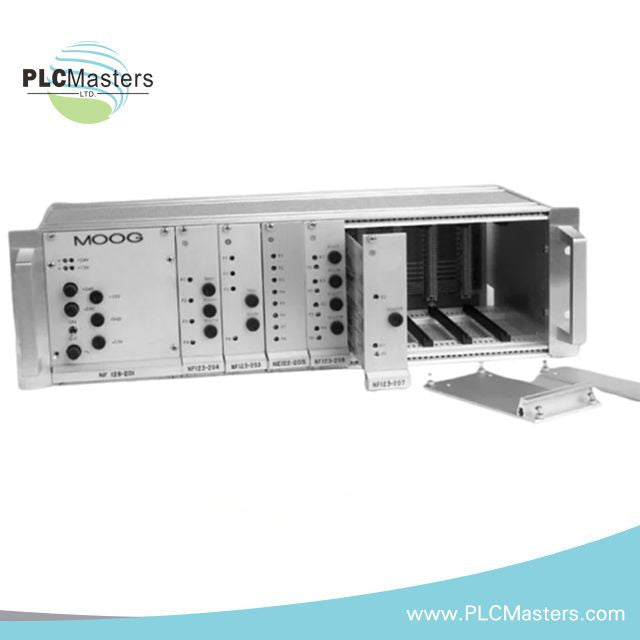

MOOG NF127-101 Series Rack Card Cage
$224.00
$360.00
What our customer's think
Reviews
Description
Overview
The MOOG NF127-101 is a robust rack card cage designed to house and support Moog NF120 Series Eurocards. It is an essential component for creating custom control systems using Moog’s modular electronics. This rack simplifies system integration and expansion.
Technical Specifications
-
Rack Mounting:
- Standard 19-inch rack mount design for easy integration into typical equipment racks or cabinets.
-
Card Compatibility:
- Accommodates up to 9 NF120 Series Eurocards in a modular configuration.
-
Power Supply:
- One location reserved for the power supply unit (DIN 41612 style H).
- Power distribution for main voltages and noise-free ground connection.
- Terminal strips for power supply connections (220/110 VAC) and output voltages of ±15V, ±24V, and 5V (optional).
-
Card Slots:
- Nine card locations (DIN 41612 style C, 7 HP per slot).
-
Terminal Strips:
- 9 x 32-pin terminal strips, each for individual card connections.
-
Contact Rating:
- 1 Amp/250 Volts for reliable signal and power distribution.
-
Power Distribution:
- Backplane with large busses to distribute power supply voltages and ensure clean, noise-free grounding.
-
Dimensions:
- Fits in standard 19" equipment racks or cabinets.
-
Pre-Assembled Design:
- Fully assembled with card guides and mating connectors for 10 cards, making setup quick and hassle-free.
-
Ease of Access:
- Front panel test points and controls are easily accessible for each Eurocard when mounted in the rack.
-
Modular and Expandable:
- Supports Moog’s modular NF120 Series cards, allowing easy customization and expansion of control systems as requirements grow.
