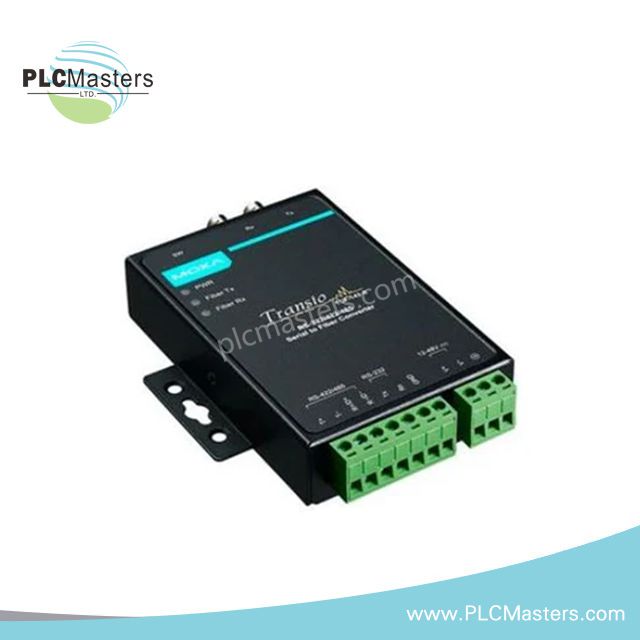

MOXA TCF-140-S-SC Serial-to-Fiber Converter

Overview

The MOXA TCF-140-S-SC is a serial-to-fiber converter designed to bridge serial communication and fiber optic networks. It converts RS-232, RS-422, and RS-485 signals into fiber optic signals for long-distance transmission over single-mode fiber cables. This industrial-grade media converter enhances communication in environments where electrical interference, distance, or environmental conditions pose challenges to traditional copper-based connections.

Technical Specifications

• Serial Interface:

  • Supports RS-232, RS-422, and RS-485 protocols for versatile connectivity.

• Fiber Interface:

  • SC connector for single-mode fiber optic cables, ensuring long-distance communication.

• Transmission Distance:

  • Up to 40 km (24.8 miles) over single-mode fiber, ideal for long-range data transmission.

• Data Rate:

  • Up to 921.6 kbps, providing high-speed communication for various applications.

• Operating Temperature:

  • 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.

• Power Input:

  • Accepts 12 to 48 VDC, offering flexibility in power supply options.

• Mounting:

  • Supports both DIN-rail and wall mounting for easy integration into industrial control systems.

• Power Consumption:

  • 70 to 140 mA @ 12 to 48 VDC.

• Reverse Polarity Protection:

  • Ensures the device is protected from incorrect power connections.

• Overload Current Protection:

  • Provides added protection against power surges or current overloads.

• IP Rating:

  • IP30, offering protection against dust and contact with hazardous parts.

• Housing:

  • Metal housing designed for durability and reliability in industrial settings.

• Storage Temperature:

  • -40°C to 85°C (-40°F to 185°F), suitable for harsh environments during storage.

• Ambient Humidity:

  • 5% to 95% relative humidity (non-condensing), ensuring proper operation in varied conditions.
