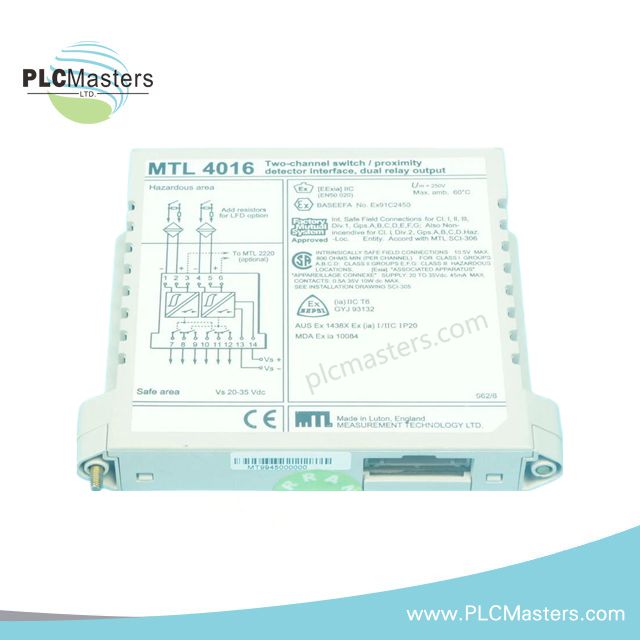

MTL MTL4016 Switch/Proximity Detector Interface Unit

MTL MTL4016 Switch/Proximity Detector Interface Unit

  • 1000 In stock
  • Manufacturer: MTL

  • Product No.: MTL4016

  • Condition: In stock

  • Product Type: Switch/Proximity Detector Interface Unit

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1361g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41849437880410,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"MTL4016","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"MTL MTL4016 Switch\/Proximity Detector Interface Unit","public_title":null,"options":["Default Title"],"price":17600,"weight":1361,"compare_at_price":47000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The MTL4016 is designed for applications where the sensor status needs to be fed to two systems, such as control and shutdown. It ensures reliable operation in hazardous environments while providing accurate signal processing.

Technical Specifications

  • Model Number: MTL4016

  • Type: Switch/Proximity Detector Interface Unit

  • Manufacturer: Eaton MTL

  • Channels: Two independent channels

  • Input Voltage: 7.0V – 9.0V DC applied to the sensor

Output Characteristics

  • Outputs close if current exceeds 2.1mA in the sensor circuit.

  • Outputs open if current drops below 1.2mA in the sensor circuit.

Relay Output

  • Double-pole on/off relay, open when de-energized.

  • Contact rating: 10W, 0.5A, 35V DC

  • Contact life expectancy: 1 million operations at maximum load

Fault Detection and Protection

  • Line Fault Detection (LFD): Detects broken or shorted lines.

  • Earth Fault Protection: Achieved by connecting terminals to an earth leakage detector.

Power Requirement

  • 50mA at 24V DC

Features

Minimum Order Quantity (MOQ)

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
