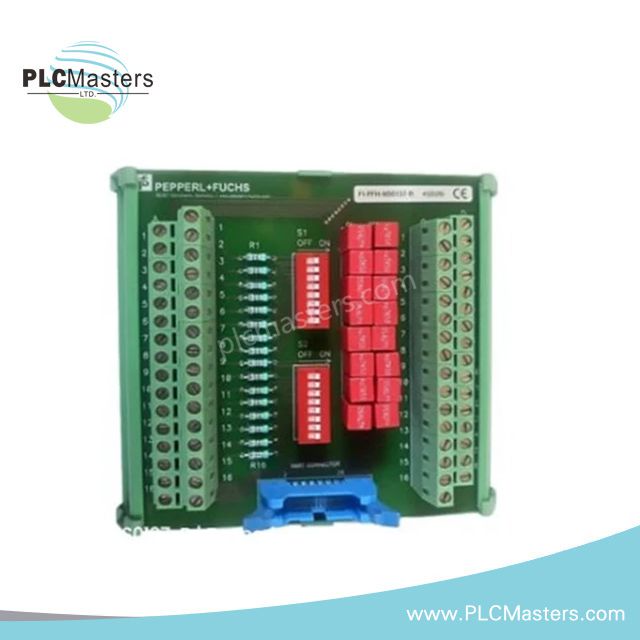

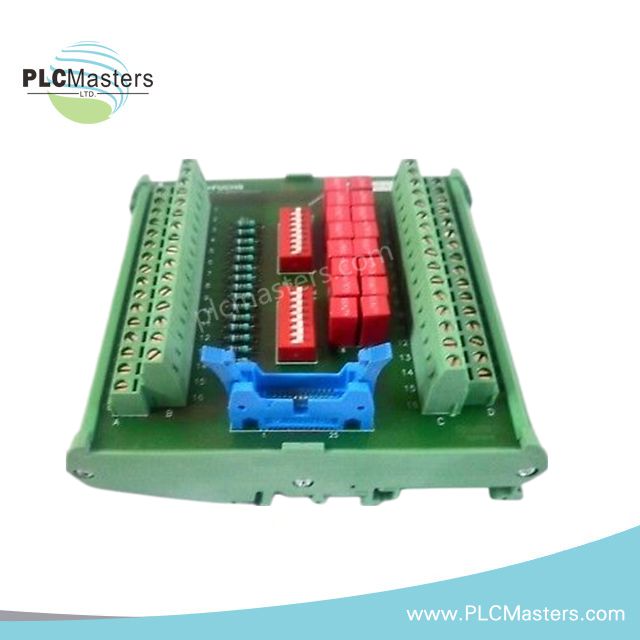

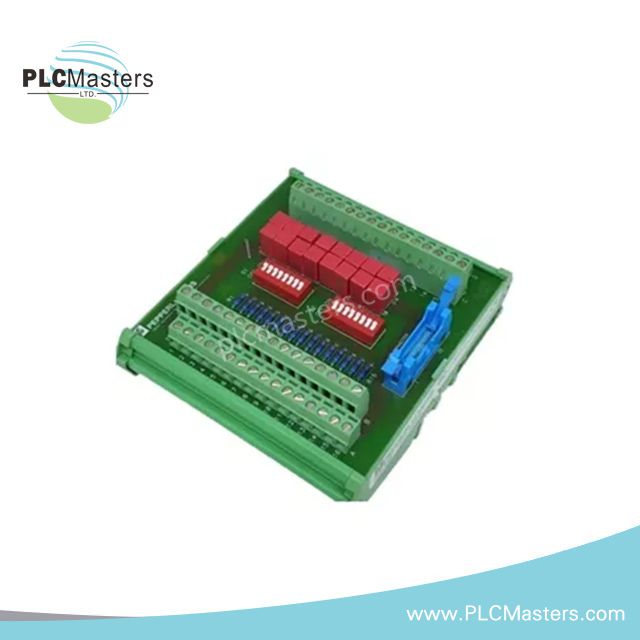

PEPPERL+FUCHS 22593 FI-PFH-NSO137-R HART Termination Board
$305.00
$589.00
What our customer's think
Reviews
Description
Overview
The Pepperl+Fuchs FI-PFH-NSO137-R HART Termination Board is an essential component in industrial automation, facilitating the connection between HART field devices and control systems. It enables two-way communication using the HART protocol over 4-20mA analog signals, allowing remote configuration and diagnostics. The termination board supports up to 16 HART devices and features a switchable 220-ohm load resistor, ensuring proper signal conditioning. It is designed for easy installation on DIN rails in control cabinets, offering reliable, organized connections for field devices.
Technical Specifications
- Signal Channels: Supports up to 16 HART channels (non-intrinsically safe).
- Load Resistor: Integrated 220 Ω, switchable (ON: without resistor, OFF: with resistor).
- Multiplexer Connection: 26-pin IDC plug for connection to HART multiplexers.
- Rated Current: Maximum 30 mA per channel.
-
Indicators/Settings:
- DIP Switch: Selectable operating mode.
- Factory Setting: DIP switches S1 and S2 set to ON (no load resistor).
Directive Conformity
-
Electromagnetic Compatibility:
- Compliant with Directive 2014/30/EU EN 61326-1:2013 (industrial locations).
- Electromagnetic Compatibility (NE 21:2017).
Environmental Conditions
- Ambient Temperature: 0 to 50°C (32 to 122°F).
- Storage Temperature: -15 to 50°C (5 to 122°F).
- Relative Humidity: ≤ 93% non-condensing.
- Shock Resistance: 15 g at 11 ms.
- Vibration Resistance: 1 g, 10 to 150 Hz.
Mechanical Specifications
- Degree of Protection: IP20.
- Housing Material: PVC.
- Mass: Approx. 210 g.
- Dimensions: 110 x 125 x 61 mm (W x H x D).
Connections
- Field Side: Screw terminals (green).
- Control Side: Screw terminals (green).
- HART: 1 x 26-pin IDC plug.
- Core Cross Section: 0.25 to 1.5 mm² (24 to 16 AWG).
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
