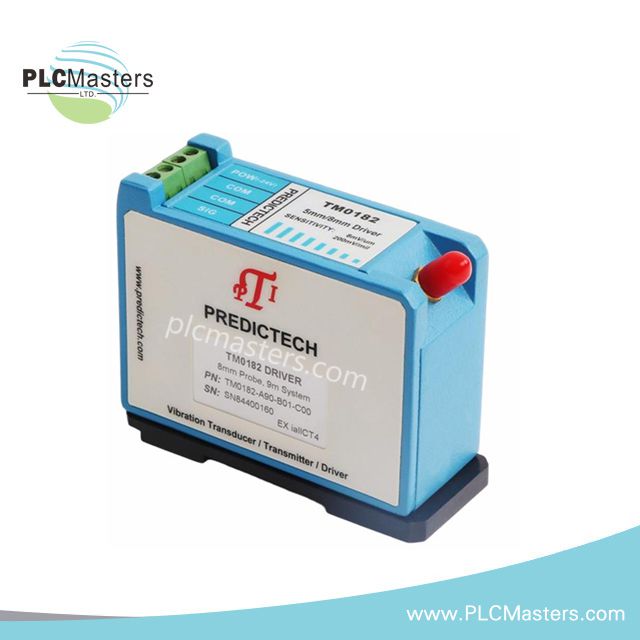

PROVIBTECH TM0182-A90-B00-C00 Proximity Probe Driver

PROVIBTECH TM0182-A90-B00-C00 Proximity Probe Driver

  • 1000 In stock
  • Manufacturer: PROVIBTECH

  • Product No.: TM0182-A90-B00-C00

  • Condition: In stock

  • Product Type: Proximity Probe Driver

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41847890903130,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"TM0182-A90-B00-C00","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PROVIBTECH TM0182-A90-B00-C00 Proximity Probe Driver","public_title":null,"options":["Default Title"],"price":16900,"weight":450,"compare_at_price":47000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The ProvibTech TM0182-A90-B00-C00 is a Proximity Probe Driver. It powers and conditions signals from eddy current proximity probes. Engineers use it to monitor vibration and shaft displacement in rotating machinery. With wide frequency support and precise sensitivity, it suits various industrial applications.

Technical Specifications

  • Model Number: TM0182-A90-B00-C00

  • Type: Proximity Probe Driver

  • Manufacturer: ProvibTech

Electrical Specifications

  • Power Supply Voltage: -23 to -30 VDC

  • Current Consumption: Less than 12 mA

  • Sensitivity: 7.87 mV/µm (200 mV/mil)

  • Frequency Response: 0 – 10.0 kHz

Mechanical Specifications

  • Minimum Target Size: 15 mm (0.6 inches) diameter

  • Cable Length: 9 meters

  • Weight: 0.45 kg

Compatible Probes

  • Probe Tip Sizes: 5 mm and 8 mm

  • System Sensitivity: 8 mV/µm

Features

Minimum Order Quantity (MOQ)

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
