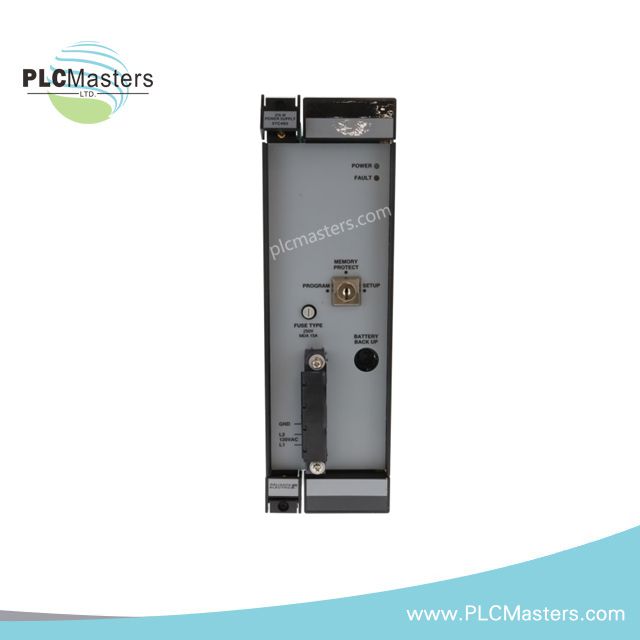

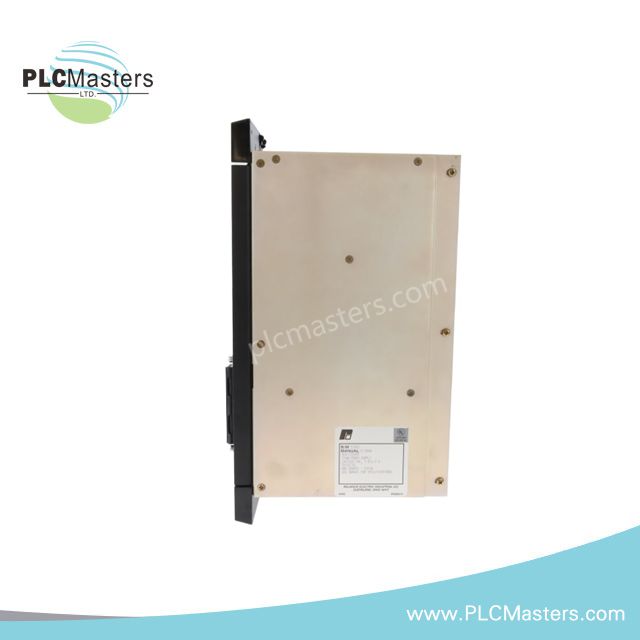

RELIANCE ELECTRIC 57C493 Power Supply Module
$234.00
$500.00
What our customer's think
Reviews
Description
Overview
The Reliance Electric 57C493 is a 376W power supply module designed for AutoMax programmable logic controller (PLC) systems. It delivers reliable power to ensure the smooth operation of PLC systems, with a wide input voltage range and robust protection features. This module is known for its easy installation and maintenance features, including captive ejectors and a removable terminal switch. The 57C493 also includes built-in over-voltage and over-current protection to safeguard the system from potential damage.
Technical Specifications
- Power Rating: 375 Watts (375W)
- Input Voltage: 100-132 VAC
- Nominal Input Frequency: 50/60 Hz
-
Isolation Rating:
- 1500 VAC input-to-input
- 600V DC output-to-rack
-
LED Indicators:
- POWER
- FAULT
-
Key Switch:
- PROGRAM
- MEMORY PROTECT
- SETUP
- Replaceable Fuse: 250V
- Battery Backup: Spot for battery backup
-
Mounting:
- Occupies three slots on AutoMax Storage Rack
- Must be the leftmost item on the rack
-
Dimensions:
- Height: 29.8 cm
- Width: 10.2 cm
- Depth: 19.7 cm
- Weight: 8.00 lbs
- Operating Temperature: 0 to 60°C
- Relative Humidity: 5-90% (non-condensing)
Protection and Durability Features
- Over-voltage Protection: Prevents damage from excessive voltage.
- Over-current Protection: Safeguards against excessive current.
- Aluminum Chassis: Provides durable, protective casing.
- Heatsink: Ensures effective thermal management during operation.
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
