Schneider 140DAI55300 Discrete Input Module

Schneider 140DAI55300 Discrete Input Module

  • 1000 In stock
  • Manufacturer: Schneider

  • Product No.: 140DAI55300

  • Condition: In stock

  • Product Type: Discrete Input Module

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41719720640602,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"140DAI55300","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schneider 140DAI55300 Discrete Input Module","public_title":null,"options":["Default Title"],"price":15200,"weight":300,"compare_at_price":32400,"inventory_management":"shopify","barcode":"France","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

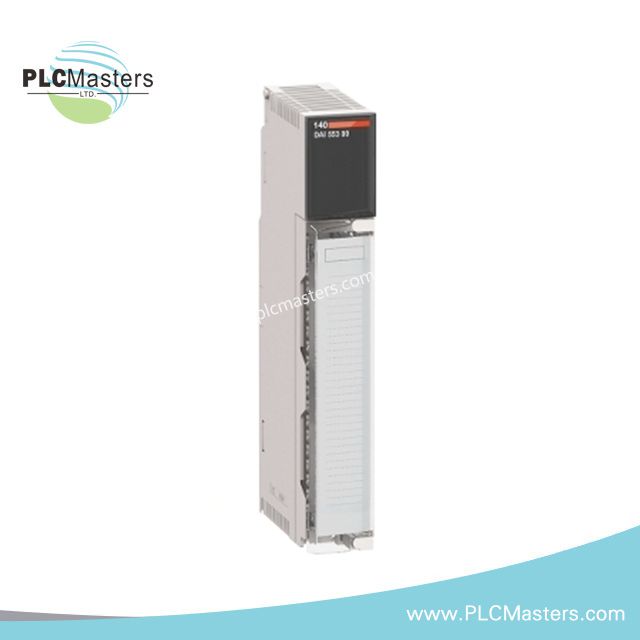

The Schneider 140DAI55300 is a Discrete Input Module for the Modicon Quantum automation platform. It offers reliable digital input functionality for industrial automation.

Technical Specifications

  • Model Number: 140DAI55300

  • Manufacturer: Schneider Electric

  • Type: Discrete Input Module

  • Series: Modicon Quantum

  • Input Channels: 32

  • Input Voltage: 115 V AC

  • Input Current: 11.1 mA at 57-63 Hz, 13.2 mA at 47-53 Hz

  • Voltage State 1: 79-132 V AC at 57-63 Hz, 85-132 V AC at 47-53 Hz

  • Voltage State 0: 0-20 V AC at 57-63 Hz, 0-20 V AC at 47-53 Hz

  • Input Impedance: 12000 Ohm capacitive at 57-63 Hz, 14400 Ohm capacitive at 47-53 Hz

  • Response Time: 4.9-0.75 ms (Off-On), 7.3-12.3 ms (On-Off)

  • Isolation: 1780 Vrms for 1 minute between group and bus

  • Power Dissipation: 10.9 W

  • Bus Current Requirement: 250 mA
