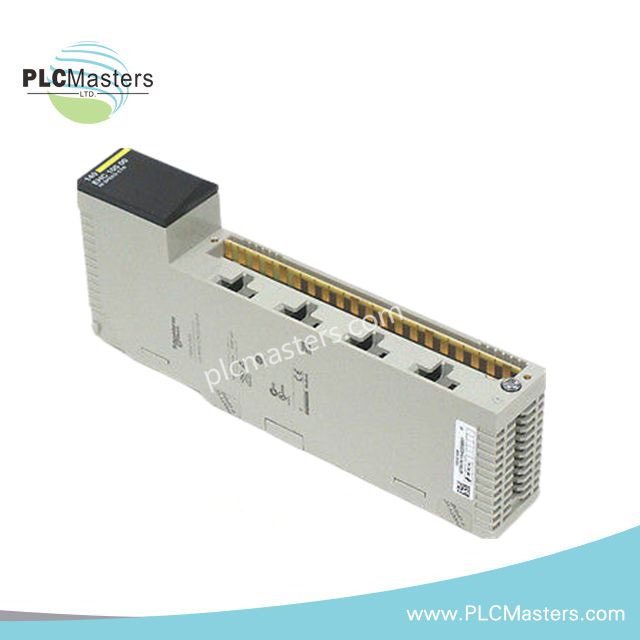

Schneider 140EHC10500 High-Speed Counter Module
$164.00
$324.00
What our customer's think
Reviews
Description
Overview
The 140EHC10500 is a High-Speed Counter Module from Schneider Electric. It is designed to work with the Modicon Quantum automation platform. This module provides reliable and efficient counting capabilities for industrial applications.
Technical Specifications
-
Model Number: 140EHC10500
-
Manufacturer: Schneider Electric
-
Type: High-Speed Counter Module
-
Series: Modicon Quantum
-
Channels: 8
Counting Characteristics
-
Counting Frequency: 100,000 Hz
-
Counting Input Voltage: 30 V DC max
-
Counting Input Current: 7 mA
-
Discrete Input Current: 5 mA
Discrete Output Details
-
Discrete Output Number: 8
-
Discrete Output Type: Field Effect Transistor (FET)
-
Discrete Output Voltage: 20-30 V DC (switch on), 0 V (switch off)
-
Load Current: 0.21 A
-
Maximum Leakage Current: 0.1 mA (state off)
-
Maximum Voltage Drop: <1.25 V (state on)
Electrical and Environmental Conditions
-
Isolation: 500 Vrms for 60 seconds between channels and bus
-
Power Dissipation: ≥ 6 W
-
Bus Current Requirement: 250 mA
-
External Power Requirement: 19.2-30 V DC
-
Operating Temperature Range: 0°C to 60°C
-
Storage Temperature Range: -40°C to 85°C
-
Relative Humidity: 95% without condensation
-
Operating Altitude: ≤ 5000 m
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
