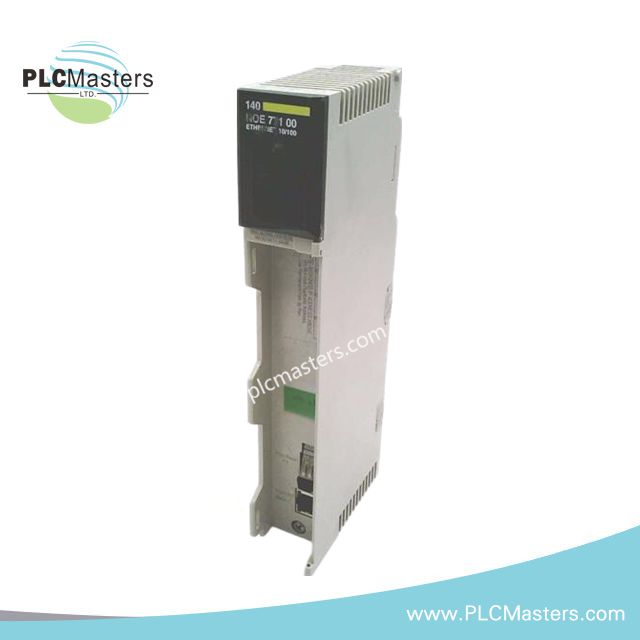

Schneider 140NOE77100 Ethernet Network TCP/IP Module
$177.00
$324.00
What our customer's think
Reviews
Description
Overview
The Schneider 140NOE77100 is an Ethernet Network TCP/IP Module designed for the Modicon Quantum automation platform. It provides reliable communication and network connectivity for industrial automation systems. Supporting both Ethernet and Modbus TCP/IP protocols, this module is ideal for applications requiring fast, secure, and efficient data transmission.
Technical Specifications
-
Model Number: 140NOE77100
-
Manufacturer: Schneider Electric
-
Type: Ethernet Network TCP/IP Module
-
Series: Modicon Quantum
-
Communication Protocols: Ethernet, Modbus TCP/IP
Physical Interface
-
MT/RJ: 100BASE-FX fiber optic
-
RJ45: 10BASE-T/100BASE-TX twisted pair
Transmission Rate
-
10/100 Mbit/s
Redundancy
-
Hot standby redundant architecture
Power Supply
-
Powered via the rack’s power supply
Current Consumption
-
750 mA at 5 V DC
Operating Conditions
-
Operating Temperature: 0 to 60 °C (32 to 140 °F)
-
Storage Temperature: -40 to 85 °C (-40 to 185 °F)
-
Relative Humidity: 95% without condensation
-
Operating Altitude: Up to 4500 m (14,763.78 ft)
Protection and Certifications
-
IP Protection Rating: IP20
-
Certifications:
-
cUL
-
UL 508
-
FM Class 1 Division 2
-
CSA C22.2 No 142
Electromagnetic Compatibility
-
Electrostatic Discharge Resistance: 4 kV contact, 8 kV air (IEC 801-2)
-
Electromagnetic Field Resistance: 9.1 V/m (10 V/m) for 80 to 1000 MHz (IEC 801-3)
Communication and Web Features
-
Communication Service:
-
Modbus TCP messaging
-
I/O scanning
-
Web Services:
-
Built-in web server
-
Diagnostics via predefined web pages
-
Data Editor via PC terminal
-
Rack viewer
Additional Features
-
Communication Port Protocol: Ethernet Modbus TCP/IP
-
Flash Memory: 8 MB
Physical Dimensions and Weight
-
Weight: 0.99 lbs
