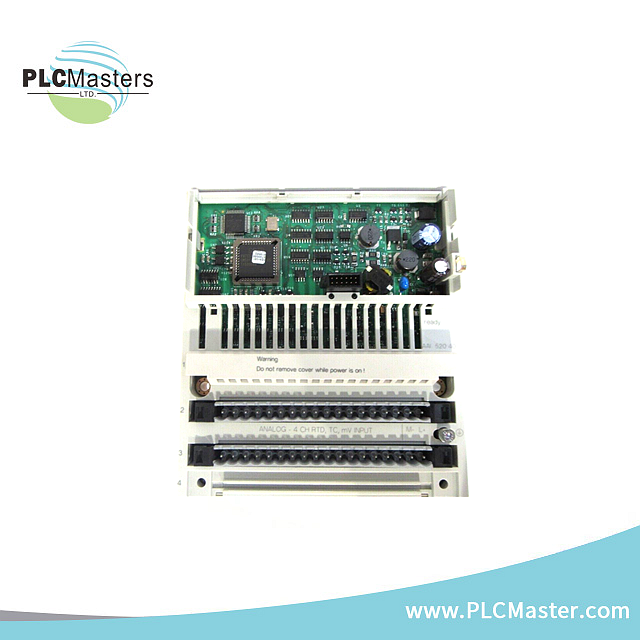

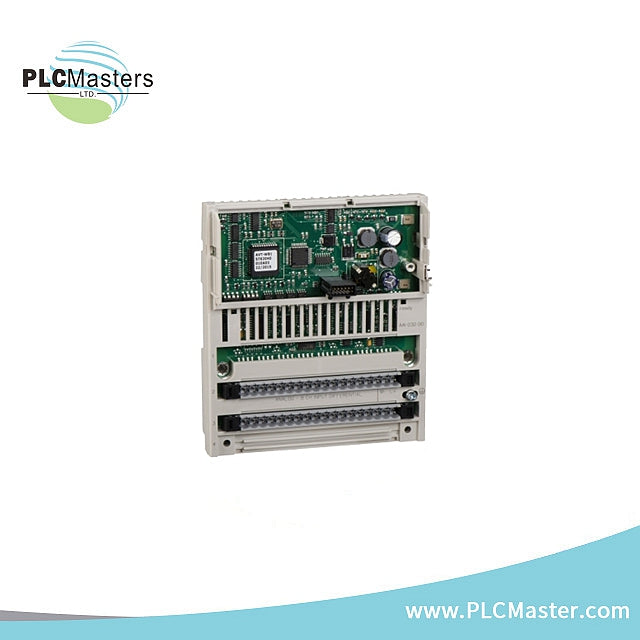

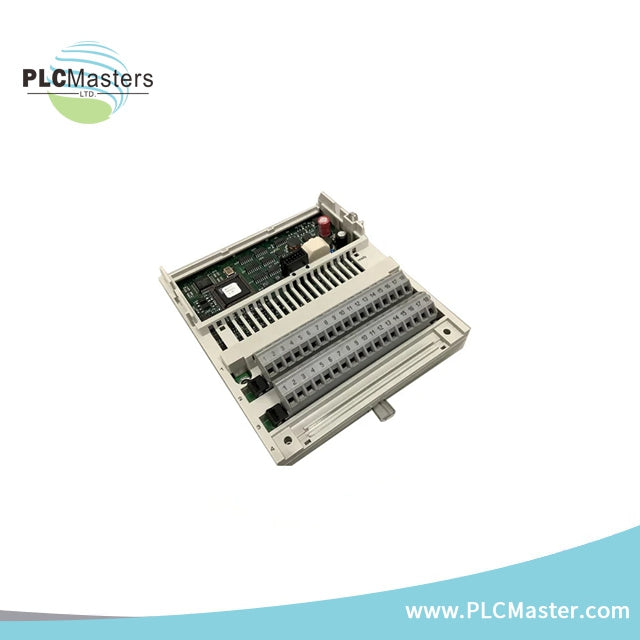

Schneider 170AAI52040 Distributed Analog Input

Schneider 170AAI52040 Distributed Analog Input

  • 1000 In stock
  • Manufacturer: Schneider

  • Product No.: 170AAI52040

  • Condition: In stock

  • Product Type: Distributed Analog Input

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 215g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41402652655706,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"170AAI52040","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schneider 170AAI52040 Distributed Analog Input","public_title":null,"options":["Default Title"],"price":20500,"weight":215,"compare_at_price":50400,"inventory_management":"shopify","barcode":"France","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

  • Schneider Electric 170AAI52040 Distributed Analog Input
  • High-performance module for industrial automation
  • Four analog input channels with 15-bit resolution

Technical Specifications

  • Product Type: Analog input base
  • Analog Inputs: 4
  • Input Type: Differential
  • Analog Input Range: ±100 mV, ±25 mV
  • Thermocouple Types: E, S, K, N, B, R, J, T
  • Data Format: Full 16 bits signed
  • Absolute Accuracy Error:
    • ±21 µV (25 °C), ±25 mV
    • ±25 µV (25 °C), ±100 mV
    • ±46 µV (60 °C), ±25 mV
    • ±94 µV (60 °C), ±100 mV
  • Temperature Probe Types: Ni 100, Ni 1000, Pt 100, Pt 1000
  • Update Time: 500 ms
  • Isolation:
    • 400 V DC between channels
    • 500 V AC for 1 minute between channels and ground
    • 500 V for 1 minute between supply and ground
  • Permissible Common Mode Voltage:
    • 100 V DC between channels to ground
    • 115 V AC single or three phases between channels
    • 200 V DC between channels
    • 250 V AC between channels to ground
    • 250 V AC single phase between channels
  • Common Mode Rejection:
    • 120 dB DC between channels
    • 130 dB 50 Hz AC between channels
    • 135 dB DC between channels to ground
    • 140 dB 60 Hz AC between channels
    • 145 dB 50 Hz AC between channels to ground
    • 155 dB 60 Hz AC between channels to ground
  • Serial Mode Rejection: 35 dB 50 Hz AC, 45 dB 60 Hz AC
  • External Power Requirement: ±30 V DC
  • Maximum Power Dissipation: 5.5 W
  • Reverse Polarity Protection: Internal
  • Protection Type: Internal 2 A slow-blow
  • Associated Fuse Rating: 500 mA, fast blow
  • Local Signaling: 4 LEDs for channel status
  • Electrical Connection: 2 connectors for removable terminal blocks
  • Current Consumption: 305 mA (24 V DC)
  • Dimensions: 1.9" (47.5 mm) depth, 4.9" (125 mm) height, 5.6" (141.5 mm) width
  • Net Weight: 0.474 lb (0.215 kg)
  • Operating Temperature: 0-60 °C
  • Storage Temperature: -40-85 °C
  • Relative Humidity: 95% without condensation
  • Operating Altitude: ≤ 5000 m
  • Certifications: FM Class 1 Division 2, CSA, UL
  • Environmental Resistance: IEC 801-2 (electrostatic discharge), IEC 801-3 (electromagnetic fields)

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
