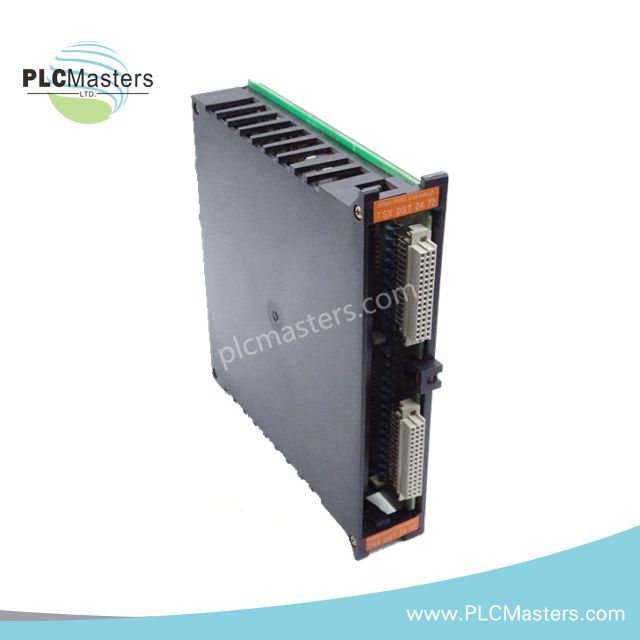

Schneider TSXDST2472 Discrete Output Module

Schneider TSXDST2472 Discrete Output Module

  • 1000 In stock
  • Manufacturer: Schneider

  • Product No.: TSXDST2472

  • Condition: In stock

  • Product Type: Discrete Output Module

  • Product Origin: France

  • Payment:T/T, Western Union

  • Weight: 560g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41719651860570,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"TSXDST2472","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schneider TSXDST2472 Discrete Output Module","public_title":null,"options":["Default Title"],"price":16200,"weight":560,"compare_at_price":32400,"inventory_management":"shopify","barcode":"France","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The Schneider Electric TSXDST2472 is a discrete digital output module designed for industrial automation systems. It belongs to the Modicon TSX Series 7, which is known for its robustness and reliability. The module provides 24 solid-state outputs, allowing for efficient control of external devices like actuators, valves, and indicators. It operates within a wide temperature range and offers fast response times, making it ideal for various industrial applications.

Technical Specifications

  • Model Number: TSXDST2472

  • Manufacturer: Schneider Electric

  • Type: Discrete Output Module

  • Series: Modicon TSX Series 7

  • Output Channels: 24 solid-state outputs

  • Output Voltage: 24 V DC

  • Output Current: 500 mA per channel

  • Response Time:

    • 20 µs max. (state 0 to 1)

    • 50 µs max. (state 1 to 0) under resistive load

  • Dimensions: 19.5 cm x 19.0 cm x 5.0 cm

  • Weight: 560 g

  • Operating Temperature Range: -25°C to +70°C

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
