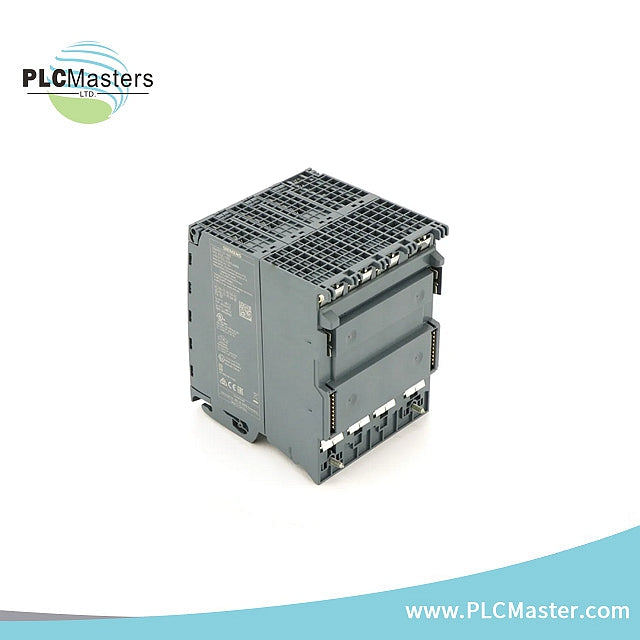

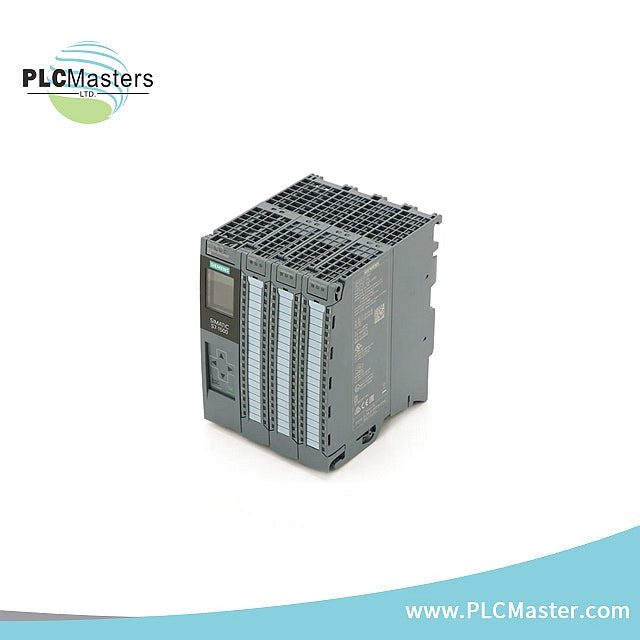

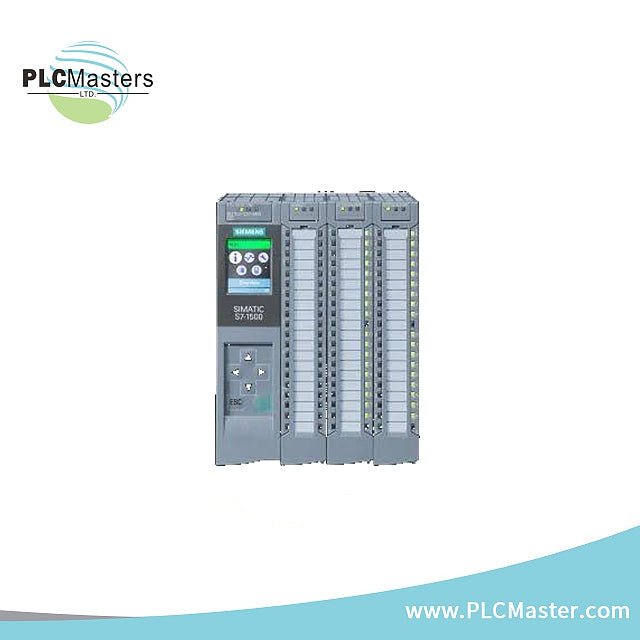

Siemens 6ES7512-1CK01-0AB0 CPU

Siemens 6ES7512-1CK01-0AB0 CPU

  • 1000 In stock
  • Manufacturer: Siemens

  • Product No.: 6ES7512-1CK01-0AB0

  • Condition: In stock

  • Product Type: CPU

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 80g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41413962989658,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"6ES7512-1CK01-0AB0","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Siemens 6ES7512-1CK01-0AB0 CPU","public_title":null,"options":["Default Title"],"price":20600,"weight":80,"compare_at_price":50300,"inventory_management":"shopify","barcode":"Germany","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The Siemens 6ES7512-1CK01-0AB0 CPU is a compact central processing unit designed for the SIMATIC S7-1500 series. It offers a range of functionalities, including extensive I/O capabilities and high-speed processing, suited for various industrial automation applications. This CPU integrates several features such as digital and analog inputs/outputs, high-speed counters, and support for PROFINET IRT.

Technical Specifications

  • Product Type: CPU 1512C-1 PN
  • HW Functional Status: FS03
  • Firmware Version: V2.9

Product Functionality:

  • I&M Data: Yes; I&M0 to I&M3
  • Isochronous Mode: Yes; with minimum OB 6x cycle of 625 µs (distributed)
  • Engineering Compatibility: Configurable with STEP 7 TIA Portal V17 (FW V2.9) / V15 (FW V2.5) or higher; older versions configurable as 6ES7512-1CK00-0AB0
  • Configuration Control: Via dataset
  • Display: Screen diagonal 3.45 cm
  • Control Elements: 8 keys, 2 mode buttons

Electrical Characteristics:

  • Supply Voltage (DC): Rated 24 V; permissible range 19.2 V to 28.8 V
  • Reverse Polarity Protection: Yes
  • Mains Buffering: 5 ms stored energy time; Repeat rate, min. 1/s
  • Input Current: Rated value 0.8 A, max. 1 A; Inrush current, max. 1.9 A
  • Power Loss: Typical 15.2 W
  • Infeed Power to Backplane Bus: 10 W
  • Power Consumption from Backplane Bus: 9 W

Memory:

  • Number of Slots for SIMATIC Memory Card: 1
  • SIMATIC Memory Card Required: Yes
  • Work Memory: 250 kbyte (program), 1 Mbyte (data)
  • Load Memory: Plug-in (SIMATIC Memory Card), max. 32 Gbyte
  • Backup: Maintenance-free

CPU Processing Times:

  • Bit Operations: Typical 48 ns
  • Word Operations: Typical 58 ns
  • Fixed Point Arithmetic: Typical 77 ns
  • Floating Point Arithmetic: Typical 307 ns

CPU Blocks:

  • Number of Elements (Total): 4,000 (Blocks, FB, FC, DB, and UDTs)

Data Areas and Retentivity:

  • Retentive Data Area (incl. timers, counters, flags): Max. 128 kbyte; Available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB
  • Extended Retentive Data Area (incl. timers, counters, flags): Max. 1 Mbyte

Digital Inputs:

  • Integrated Channels (DI): 32
  • Source/Sink Input: P-reading
  • Input Characteristic Curve: IEC 61131, type 3
  • Input Voltage: DC; Rated value 24 V
  • Input Current: For signal "1", typical 2.5 mA
  • Input Delay: Parameterizable; max. 20 ms

Digital Outputs:

  • Type: Transistor
  • Integrated Channels (DO): 32
  • Current-Sourcing: Yes; Push-pull output
  • Short-Circuit Protection: Yes; electronic/thermal
  • Switching Capacity: With resistive load, max. 0.5 A; on lamp load, max. 5 W
  • Output Voltage: DC; For signal "1", min. 23.2 V
  • Output Current: For signal "1", rated value 0.5 A; permissible range 2 mA to 0.6 A

High-Speed Counters and Outputs:

  • High-Speed Counters: 6
  • High-Speed Outputs: 4 (PTO/PWM/Frequency Output)

Encoder Supply:

  • Number of Outputs: 2; One common 24 V encoder supply per 16 digital inputs
  • 24 V Encoder Supply: Yes; L+ (-0.8 V); Short-circuit protection

Hardware Configuration:

  • Number of Distributed IO Systems: 32
  • Number of DP Masters: Via CM 6
  • Number of IO Controllers: Integrated 1; Via CM 6
  • Modules per Rack: Max. 32 (CPU + 31 modules)
  • Number of Lines: Max. 1

Time of Day:

  • Clock Type: Hardware clock
  • Backup Time: 6 weeks at 40 °C ambient temperature
  • Deviation per Day: Max. 10 s; Typical: 2 s
  • Operating Hours Counter: 16

Communication:

  • Clock Synchronization: Supported; in AS master, AS slave, on Ethernet via NTP

Cable Length:

  • Shielded: Max. 1,000 m; 600 m for technological functions
  • Unshielded: Max. 600 m
