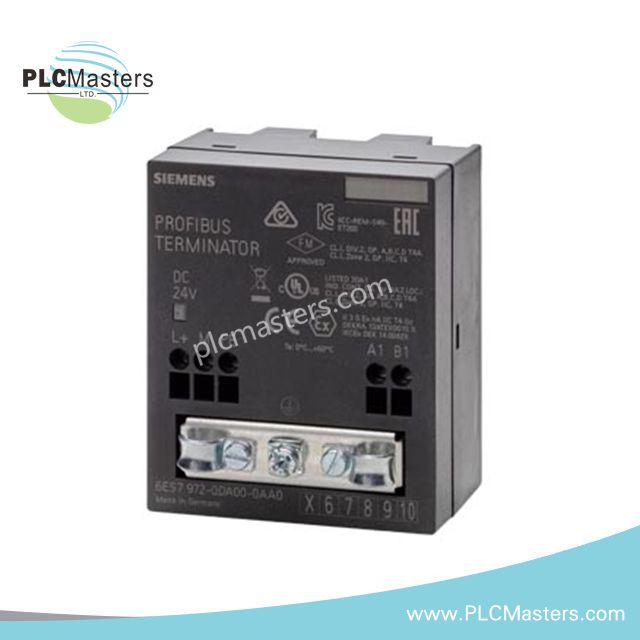

Siemens 6ES7972-0DA00-0AA0 RS485 Terminating Resistor

Siemens 6ES7972-0DA00-0AA0 RS485 Terminating Resistor

  • 1000 In stock
  • Manufacturer: Siemens

  • Product No.: 6ES7972-0DA00-0AA0

  • Condition: In stock

  • Product Type: RS485 Terminating Resistor

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 105g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41839123923034,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"6ES7972-0DA00-0AA0","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Siemens 6ES7972-0DA00-0AA0 RS485 Terminating Resistor","public_title":null,"options":["Default Title"],"price":14700,"weight":105,"compare_at_price":53000,"inventory_management":"shopify","barcode":"Germany","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The Siemens 6ES7972-0DA00-0AA0 is an active RS485 terminating element, designed for use in PROFIBUS/MPI network termination. It ensures stable signal transmission and prevents network signal reflections, maintaining integrity in SIMATIC DP applications.

Technical Specifications

  • Model Number: Siemens 6ES7972-0DA00-0AA0

  • Product Type: Active RS485 terminating element

  • Application: PROFIBUS/MPI network termination

  • Supply Voltage: 24V DC

  • Permissible Voltage Range: 20.4V – 28.8V DC

  • Current Consumption: 30 mA (typical)

  • Power Loss: Max 0.72 W

  • Transmission Rate: 9.6 kbit/s to 12 Mbit/s

  • Electrical Connection: Screw terminal block

  • Protection Class: IP20

  • Operating Temperature: 0°C to +60°C

  • Storage Temperature: -40°C to +70°C

  • Relative Humidity: Max 95% at +25°C

  • Net Weight: 0.105 kg

  • Packaging Dimensions: 7.30 cm × 8.70 cm × 6.00 cm

Features

Minimum Order Quantity (MOQ)

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
