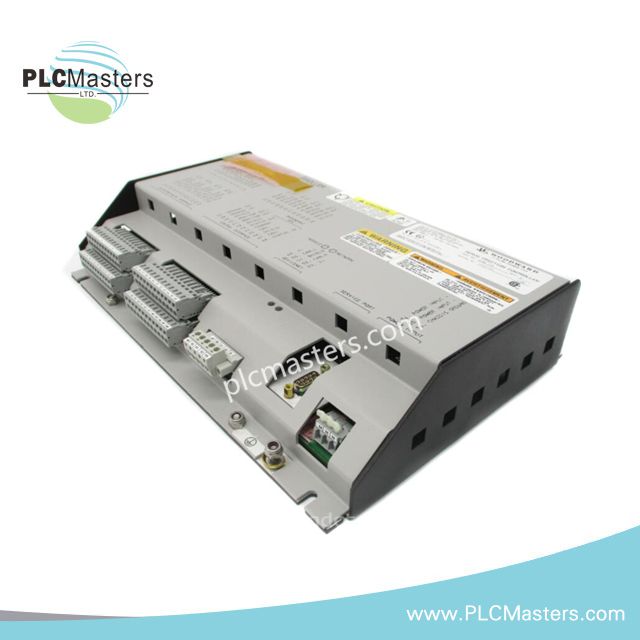

Woodward 8239-065 Servo Position Controller

Overview

The Woodward 8239-065 is an advanced servo position controller, designed for industrial applications requiring precise motion control. It ensures accurate positioning of servo actuators in various systems, including turbines, engines, and machinery. The controller is crucial for applications like valve and throttle control, ensuring optimal performance and safety in power generation and other critical industrial settings.

Technical Specifications

• Manufacturer: Woodward

• Model Number: 8239-065

• Product Type: Servo Position Controller

• Power Source:

  • High Voltage: 90 to 150 VDC or 88 to 132 VAC, 45 to 440 Hz
  • Low Voltage: 20 to 40 VDC

• Power Capacity: Minimum of 15 W

• Weight: 3.50 lbs

• Key Features:

  • Input Signal Processing: Ensures precise control of the actuator.
  • Position Feedback Monitoring: Guarantees accurate positioning of the actuator.
  • Output Drive Circuitry: Controls the servo actuator effectively.
  • Marine Listing: Indicates suitability for marine applications.

• Applications:

  • Servo Actuator Control: Used for controlling valves, throttles, and other mechanical components based on electronic signals.
