Woodward 9905-860 Peak 150 Digital Control Unit

Woodward 9905-860 Peak 150 Digital Control Unit

  • 1000 In stock
  • Manufacturer: Woodward

  • Product No.: 9905-860

  • Condition: In stock

  • Product Type: Peak 150 Digital Control Unit

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 950g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41730373910618,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"9905-860","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Woodward 9905-860 Peak 150 Digital Control Unit","public_title":null,"options":["Default Title"],"price":14500,"weight":950,"compare_at_price":33500,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

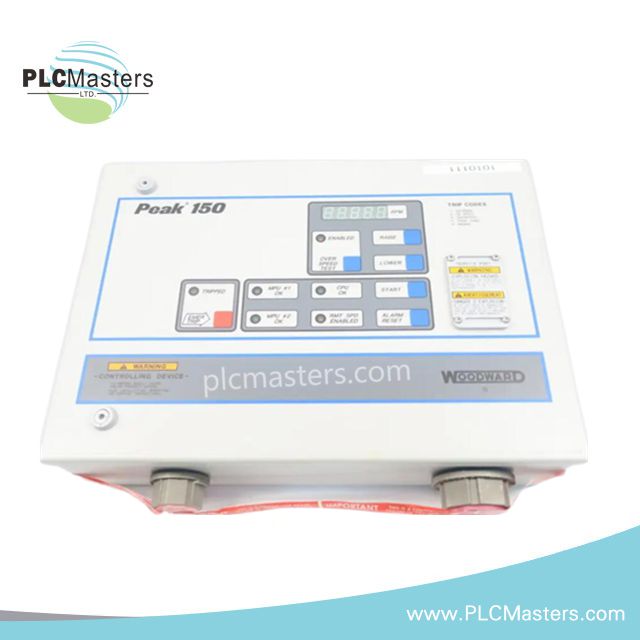

The Woodward 9905-860 is a Peak 150 Digital Control Module designed for steam turbine applications. It provides precise control of turbine speed and offers comprehensive protection features to safeguard against potential hazards. The unit also features a Modbus communication protocol for easy integration with plant control systems and a 5-digit LED display for real-time monitoring.

Technical Specifications

  • Model Number: 9905-860

  • Manufacturer: Woodward

  • Type: Peak 150 Digital Control Module

  • Input Voltage: 24 VDC

  • Output Voltage: 0-3 VDC

  • Control Signal Current Range: 0-200 mA

  • Operating Temperature: -25°C to +60°C

  • Storage Temperature: -40°C to +85°C

  • Enclosure Rating: NEMA 4

  • Communication Protocol: Modbus

  • Magnetic Pickup Inputs: 2 identical, high-signal-selected inputs

  • Display: 5-digit LED speed display

  • Dimensions: 483 mm (W) x 310 mm (H) x 105 mm (D)

  • Weight: 0.95 kg

  • Power Consumption: Max 38 W
