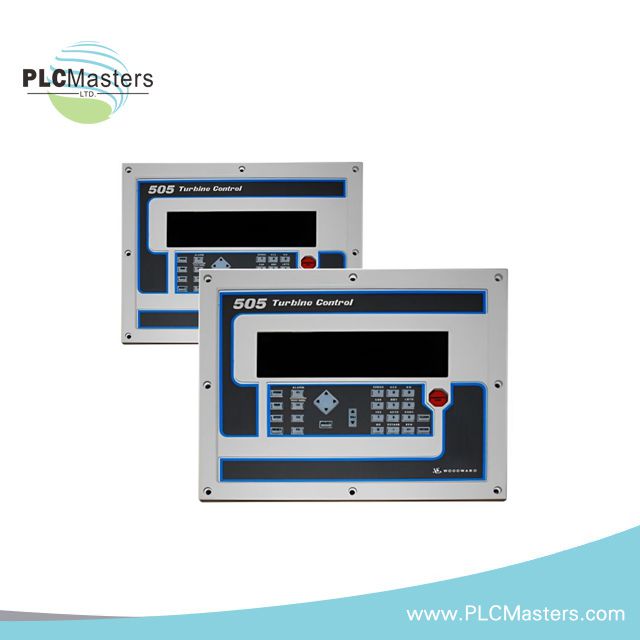

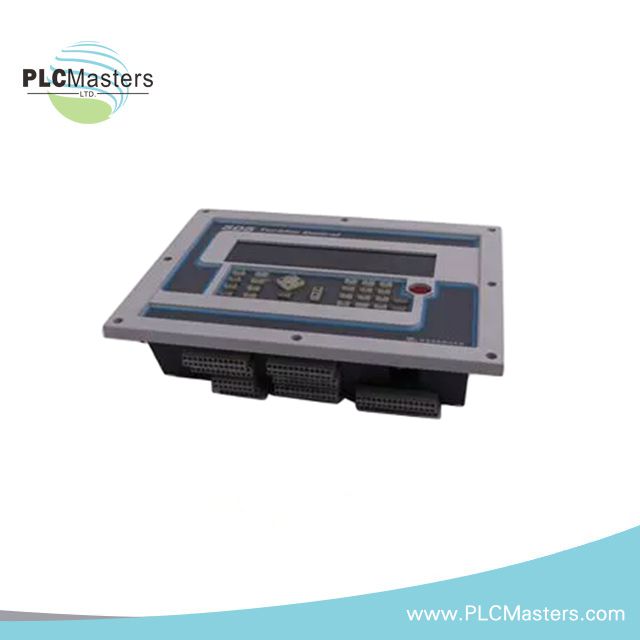

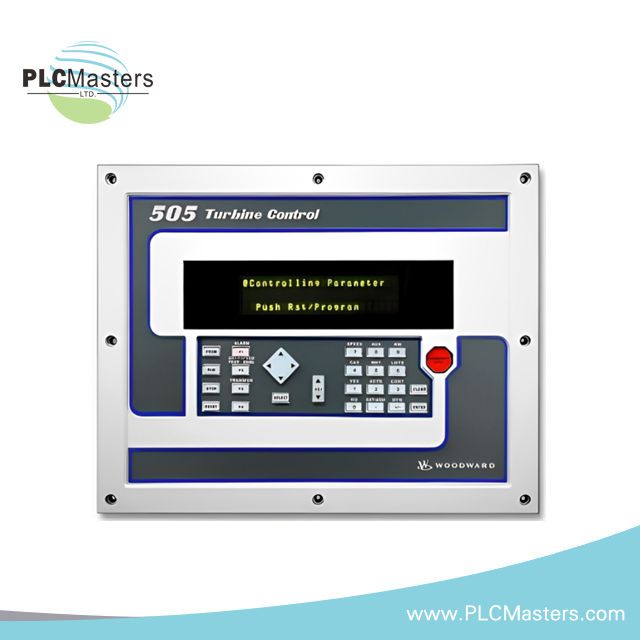

WOODWARD 9907-166 Turbine Control Operator Panel
$170.00
$330.00
What our customer's think
Reviews
Description
Overview
The Woodward 9907-166 is a turbine control operator panel designed for use in 505E digital turbine control systems. It is primarily used for controlled extraction and/or admission pressure control. This module is a key component in various industrial applications, particularly those involving turbines.
9907-166 Technical Specifications
Dimensions
- 14L x 11H x 4D inches
Enclosure Type
- Optional NEMA 4
Features
- 2 Modbus (ASCII or RTU) Comm Ports
Input Options
- 2 MPUs
- 16 Contact Inputs
- 6 Programmable Current Inputs
Input Voltage
- 90–150 Vdc
- 88–132 Vac (47–63 Hz)
Keypad/Display
- 30 Keys
Manufacturer
- Woodward
Operating Temperature
-
–25 to +65°C
- With NEMA 4X enclosure: up to 55°C
Output Type
- 2 Actuator Outputs
- 8 Relay Outputs
- 6 Programmable Current Outputs
Resolution
- 2 Line LED - 24 Characters
Standards
- Humidity and Vibration: Lloyd’s ENV2 test #1
Weight
- 9.11 lbs
