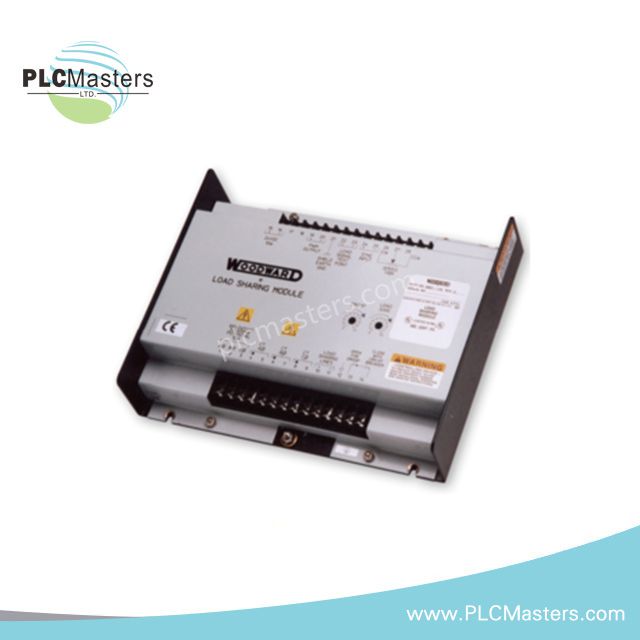

Woodward 9907-838 Load Sharing Module
$196.00
$320.00
What our customer's think
Reviews
Description
Overview
The 9907-838 is a Woodward Load Sharing Module (LSM) designed to provide precise load distribution and control for industrial generator systems. It incorporates both isochronous and droop load sharing capabilities, ensuring smooth load balancing when multiple generators are in operation.
- Isochronous load sharing allows for load adjustments even when generators are paralleled.
- Droop load sharing offers load reduction from no-load to full-load conditions.
This module is designed for durability and operational reliability in harsh environments, with features that include shock resistance, wide temperature tolerance, and compact dimensions for easy installation.
Technical Specifications
-
Power Input:
- 18 to 32 VDC (DC power input)
-
3-Phase PT Inputs:
- 95-130 Vac
-
Environmental Tolerance:
- Operation Temperature: -40°F to 158°F (-40°C to 70°C)
- Shock Resistance: 40 G at 11 ms sawtooth pulse
- Air Quality: Pollution Degree 2 (suitable for industrial environments)
-
Dimensions:
- Length: 273.6 mm (10.77 inches)
- Width: 59.2 mm (8.43 inches)
- Height: 214.1 mm (2.33 inches)
- Weight: 1.36 kg (3 pounds)
-
Output to Speed Control:
- +0.5 to +4.5 Vdc analog
-
Sync Input:
- Compatible with Woodward SPM-A synchronizer
-
Power Input for Synchronization:
- 100-240 VAC, 50-400 Hz, 2.7-10.5 AMP
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
