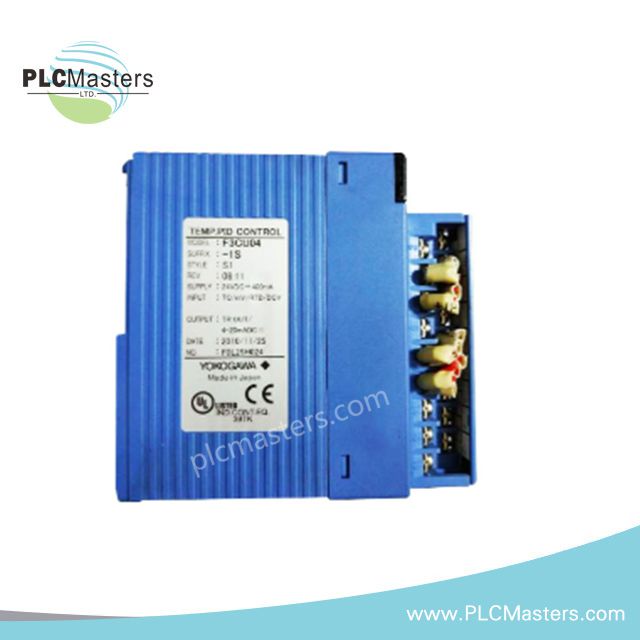

Yokogawa F3CU04-1S Temperature Control And PID Module
$157.00
$350.00
What our customer's think
Reviews
Description
Overview
The Yokogawa F3CU04-1S is a high-performance temperature control and PID module within the FA-M3 series. It is designed to deliver precise temperature regulation for industrial applications. With its versatile control features, such as auto-tuning, cascade control, and universal input support, the module ensures efficient temperature management. Its robust design includes high-speed performance, making it suitable for a range of processes requiring precise temperature control, both in heating and cooling operations.
Technical Specifications
- Product Type: Temperature Control and PID Module
- Manufacturer: Yokogawa
- Part Number: F3CU04-1S
- Control Loops: 4 loops, independently controlled
- Input Types: Thermocouples, RTDs, DC voltage
- Control Functions: ON/OFF, PID (auto/manual tuning), ramp/soak programming
- Communication Interfaces: RS-485, Ethernet, USB
- Analog Inputs: Up to 8 configurable (universal input)
- Analog Outputs: Up to 4 configurable
- Digital Inputs: 16 inputs for control and monitoring
- Digital Outputs: 8 relay outputs for alarms
- Auto-Tuning: Dynamic auto-tuning function
- Sampling Period: 250 ms per loop
- Operating Voltage: 24V DC
- Operating Temperature Range: 0°C to +55°C
- Humidity Range: 5% to 95% (non-condensing)
- Alarm Outputs: 4 alarm outputs per loop, 2 input relays per alarm
- Alarm ON-Delay Function: Yes
- Warm-Up Time: 30 minutes minimum
- Max. Ambient Temperature Change Rate: 10°C/h
- External Connection: Two 18-point terminal blocks with M3.5 screws
- Current Consumption: 470 mA (5 VDC)
Features
Minimum Order Quantity (MOQ)
We welcome bulk orders and have a minimum order quantity of just one unit.
Certificates and Documentation
Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.
Delivery Time
For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.
Payment Methods
We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.
Warranty
We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.
Refund and Return Policy
Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
